A 1-part cross-linking PVAc D4 dispersion is a ready-to-use, water-based wood adhesive that achieves EN 204 Class D4 water resistance without adding an external hardener. Upon drying, internal chemical cross-linking forms a durable, weatherproof, heat-resistant bond, making it ideal for exterior doors, windows, and heavy joinery.
Formulated for extreme exterior exposure, it creates an adhesive bond stronger than the natural timber itself, resisting boiling water, continuous outdoor weathering, high humidity, and cyclic temperature shifts.
| Specification Property | Technical Value / Standard |
|---|---|
| Chemical Base | Water-based self-crosslinking PVAc (Polyvinyl Acetate) emulsion |
| Water Resistance Class | EN 204 D4 & WATT 91 heat resistance |
| Appearance / Color | Milky white / off-white liquid (dries clear) |
| Solid Content | 44% – 48% |
| pH Value | 3.0 – 3.8 (mildly acidic) |
| Density | Approx. 1.07 g/cm3 |
| Viscosity | 5,000 – 6,500 mPa·s (at 20°C, Brookfield) |
| Open Time | 8 – 10 minutes (at 20°C, 150 g/m²) |
| Minimum Clamping Time | 15 – 25 minutes (at 20°C) |
| Press Pressure | 0.2 – 0.6 N/mm² |
| Coverage | 150 – 180 g/m² (assembly), 80 – 140 g/m² (surface) |
| Minimum Film Forming Temp (MFFT) | Approx. +8°C to +10°C |
Below are its main applications across carpentry, manufacturing, and industrial assembly:

Built to withstand continuous weather, UV, rain, and humidity without delaminating, it is primarily used for:
Exterior Doors & Entryway Frames: Bonding stiles, rails, and panels, ensuring joints remain stable through moisture cycles.
Window Casements & Frames: Glued joints for wooden window frames, sash windows, and shutters exposed directly to weathering.
Gates, Fences, & Pergolas: Demanding structural joints in heavy-duty outdoor wooden gates, boundary fences, and garden pergolas.
Outdoor & Garden Furniture: Assembly of benches, patio tables, and exterior seating using softwoods, hardwoods, or exotic timbers (like Teak, Oak, Meranti, and Accoya).
2. High-Strength Lamination & FramingIts exceptionally high bond strength (often stronger than the wood itself) makes it a preferred glue for structural timber bonding:
Post & Beam Lamination: Bonding thick, multi-layer timbers for architectural and load-bearing timber frames.
Finger Jointing & Edge Glued Panels: Creating continuous lengths of wood or wide tabletop panels from shorter sections.
Staircase Fabrication: Bonding stair treads, risers, balusters, and handrails that experience heavy daily impact and load.
Structural Veneering & HPL Bonding: Attaching natural wood veneers or high-pressure laminates (HPL) to dense wood substrates (such as plywood and MDF).
While typically used outside, its D4 status makes it invaluable for high-humidity indoor areas where D2 or D3 glues fail:
Kitchen Cabinetry & Worktops: Bonding wood, HPL, or laminate surfaces where standing water, condensation, and steam are common.
Bathroom Vanity Units: Multi-layer construction of washroom cabinetry and moisture-prone wooden fixtures.
Indoor Wet Rooms: Bonding panels and architectural trim in spa areas, laundry rooms, and basements with regular humidity.
Excellent resistance to impact, vibration, and continuous temperature changes allows it to excel in mobile and maritime settings
Boat Building & Outfitting: Joining Internal bulkheads, trim, and cabinetry for boats, where regular contact with moist, salty air occurs
RVs & Caravan Interiior Assembly: Bonding lightweight plywood, frame structures, and wood-to-metal backings to handle road vibrations and changing weather conditions

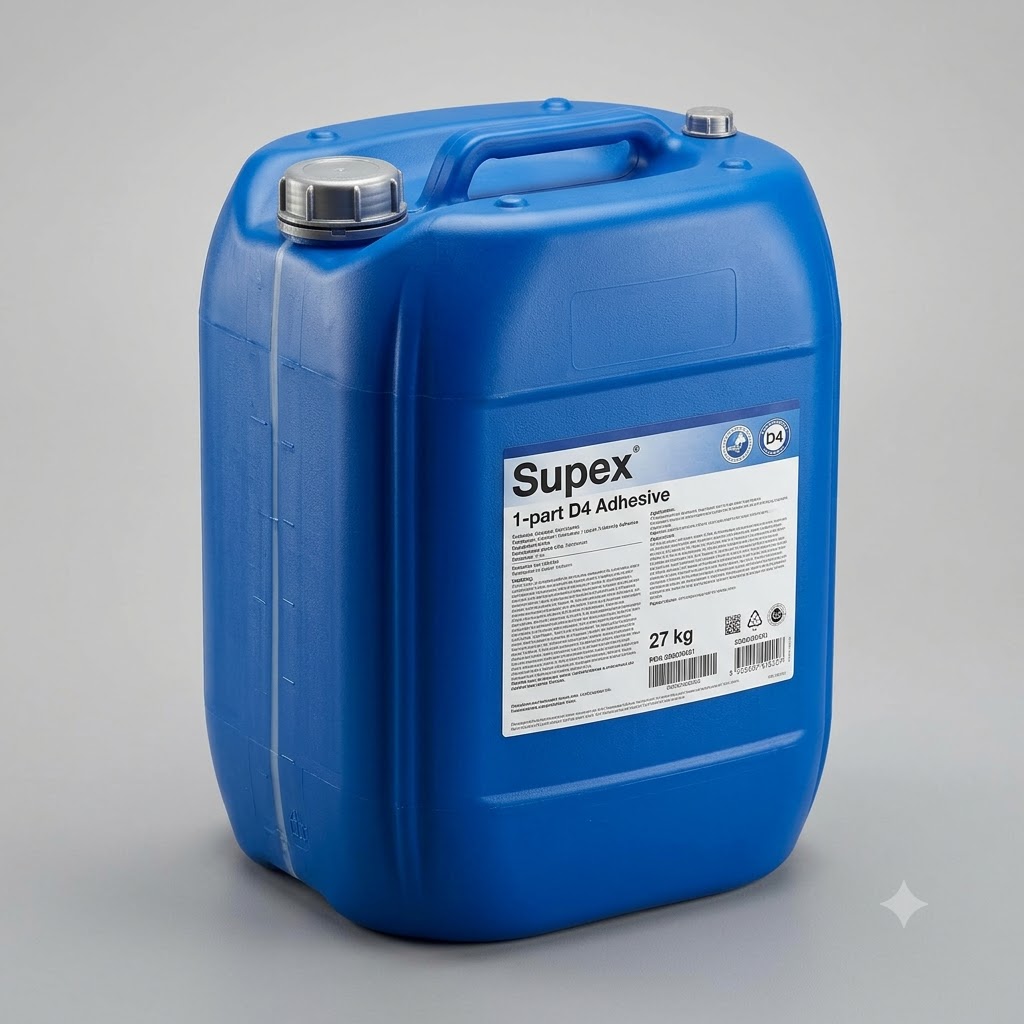

Supex 1-Part D4 Wood Adhesive eliminates production bottlenecks, mixing errors, and material waste by delivering certified DIN EN 204 D4 exterior-grade durability straight from the container.
Zero Mixing Required: Eliminates manual measuring, scales, and separate hardeners or catalysts, removing human mixing errors entirely.
No Pot-Life Waste: Unused adhesive left in applicators or containers will not harden prematurely into dead inventory, cutting material waste to near zero.
Streamlined Workflow: Faster prep time speeds up high-volume production cycles in CNC, door, window, and finger-jointing lines.
DIN EN 204 Class D4 Certified: Engineered to withstand prolonged exposure to running water, cyclic condensation, high ambient humidity, and outdoor rain.
High Heat & Creep Resistance (WATT 91): Resists bond creep and joint separation even under direct summer sun or high ambient workshop temperatures.
Substrate-Defeating Bond Strength: Once fully cured, the adhesive matrix develops shear strength that exceeds the structural tensile strength of most timber species.
Clear, Sandable Glueline: Dries to a discreet, clean finish that blends naturally into wood joints without blackening or unsightly bleed.
Tool-Friendly: Fully cured joints can be planed, routed, and shaped without gumming up sandpaper or dulling carbide cutting tools.
Coating Compatible: Accepts varnishes, polyurethane topcoats, stains, oils, and exterior lacquers without causing discoloration or adhesion rejection.
Wide Wood Compatibility: Bonds softwoods, engineered boards (MDF, HDF, marine ply), and resinous or dense hardwoods (teak, oak, meranti).
Cross-Material Adhesion: Capable of securing timber to non-porous face sheets, metals, and insulating panel cores.
Surface Preparation
Ensure timber surfaces are freshly planed, clean, dry, and free of dust, grease, oil, and mill glaze.
Target a wood moisture content between 8% and 14%. Excessive dryness can slow down the moisture-curing reaction, while wood that is too wet will compromise bond integrity.
For oily or dense hardwoods (e.g., teak), wipe surfaces with a solvent-damped cloth (such as acetone) and let it flash dry immediately before glue application.
Adhesive Application
Apply directly from the squeeze bottle, brush, roller, or automated dosing unit.
Coat one substrate uniformly at an application rate of roughly 120–180 g/m².
For porous end-grain joints or ultra-dense exotic timbers, apply a light coat to both mating faces.
Open Time & Joint Assembly
Mate the joint within the adhesive’s open time (typically 8 to 15 minutes at 20°C / 65% RH).
Do not let the adhesive form an inactive surface skin before mating; if a skin forms, scrape it off and reapply.
Clamping & Pressure
Apply uniform mechanical pressure across the entire joint using sash clamps, hydraulic presses, or pneumatic cramps.
Recommended pressure:
Softwoods: 0.3 – 0.6 N/mm² (3 – 6 kg/cm²)
Hardwoods & Lamination: 0.6 – 1.2 N/mm² (6 – 12 kg/cm²)
Maintain clamping pressure for a minimum of 30 to 60 minutes under standard workshop conditions (20°C). Lower temperatures and low humidity will extend required press times.
Clean-Up & Full Cure
What is the difference between D3 and 1-Part D4 wood adhesive?
D3 wood adhesive is water-resistant and suited for indoor environments with short-term water contact (e.g., bathroom furniture). D4 wood adhesive provides full weatherproofing and handles prolonged, frequent exposure to outdoor rain, running water, and condensation.
Does a 1-part D4 adhesive require an added catalyst or hardener?
No. A 1-part D4 adhesive is pre-catalyzed. It cures via contact with ambient air moisture and the natural moisture content in the timber, removing the waste and mess of two-component systems.
Can it be sanded and finished over?
Yes. Once fully cured, the glueline sands cleanly without gumming up abrasives and accepts common stains, varnishes, and outdoor lacquers without bleed-through.
